PoC of Analog mmWave Repeaters for 5G/6G Cellular Networks
The millimeter-wave (mmWave) band is a key technology for high-speed, large-capacity communications in 5G and beyond due to its wide bandwidth. However, severe propagation loss at high frequencies limits coverage, especially in non-line-of-sight environments.
To address this issue, analog mmWave repeaters with beamforming capability have attracted attention as a cost-effective solution for coverage extension. In this research, we experimentally evaluate the performance of mmWave repeaters in a real 5G environment constructed at the Ookayama campus of the Institute of Science Tokyo.
Bullet Points Item
- Field deployment and PoC evaluation of analog mmWave repeaters
- Coverage extension using multi-hop wireless transmission
- Achieved over 1 Gbps downlink throughput with repeaters
Image Item

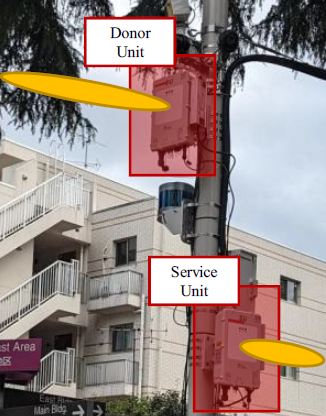

mmWave repeater units installed for the field PoC experiment.
PoC environment and deployment of mmWave repeaters at the Ookayama campus of Institute of Science Tokyo.

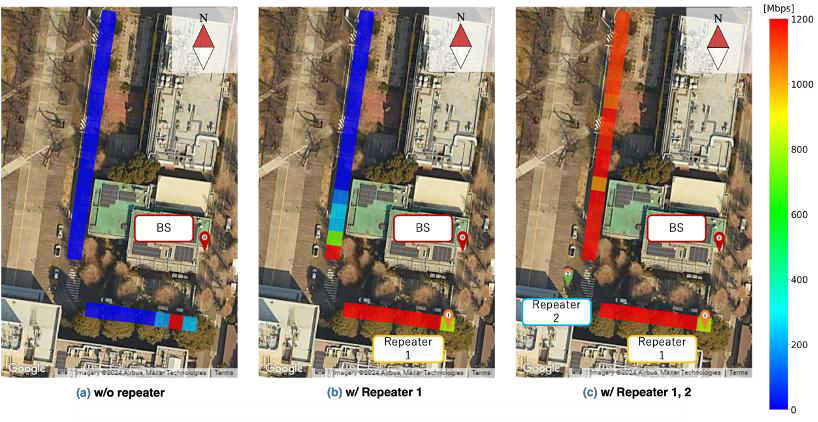

Measured downlink throughput with and without mmWave repeaters. Coverage and throughput are significantly improved by repeater deployment.
